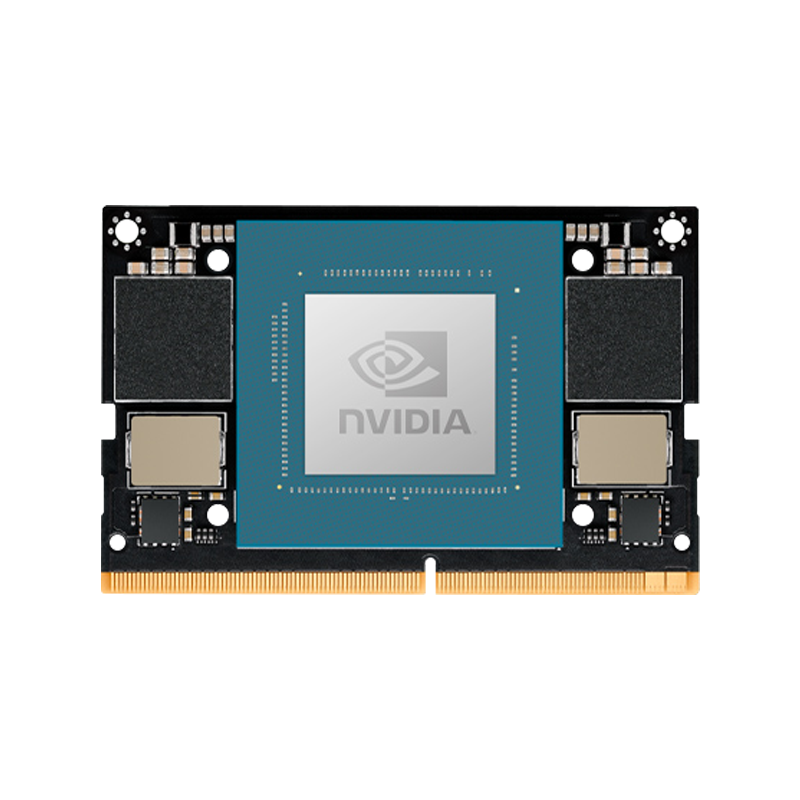

Jetson Orin Nano 系列
Jetson Orin Nano 8GB
|
|
Jetson Orin Nano 4GB |
Jetson Orin Nano 8GB |
|
AI Performance |
34 TOPs |
67 TOPs |
|
GPU |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
GPU Max Frequency |
625MHz |
|
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
|
CPU Max Frequency |
1.5GHz |
|
|
Memory |
4GB 64-bit LPDDR5 34 GB/s |
8GB 128-bit LPDDR5 68 GB/s |
|
Storage |
- (Supports externalNVMe) |
|
|
Video Encode |
1080p30 supported by 1-2 CPU cores |
|
|
VideoDecode |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
|
|
Camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
|
PCIe* |
1 x4 + 3 x1 (PCIeGen3, Root Port, & Endpoint) |
|
|
USB* |
3x USB 3.2 Gen2 (10Gbps) 3x USB 2.0 |
|
|
Networking* |
1xGbE |
|
|
Display |
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4** |
|
|
Other I/O |
3x UART, 2x SPI, 2xI2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
|
|
Power |
5W - 10W |
7W - 15W |
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMMconnector |
|
