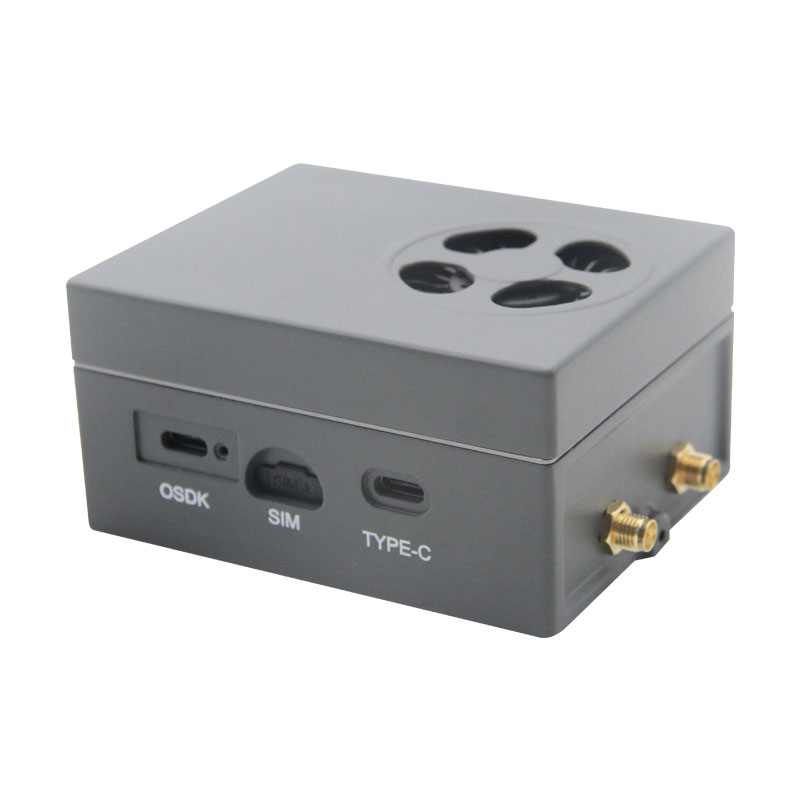

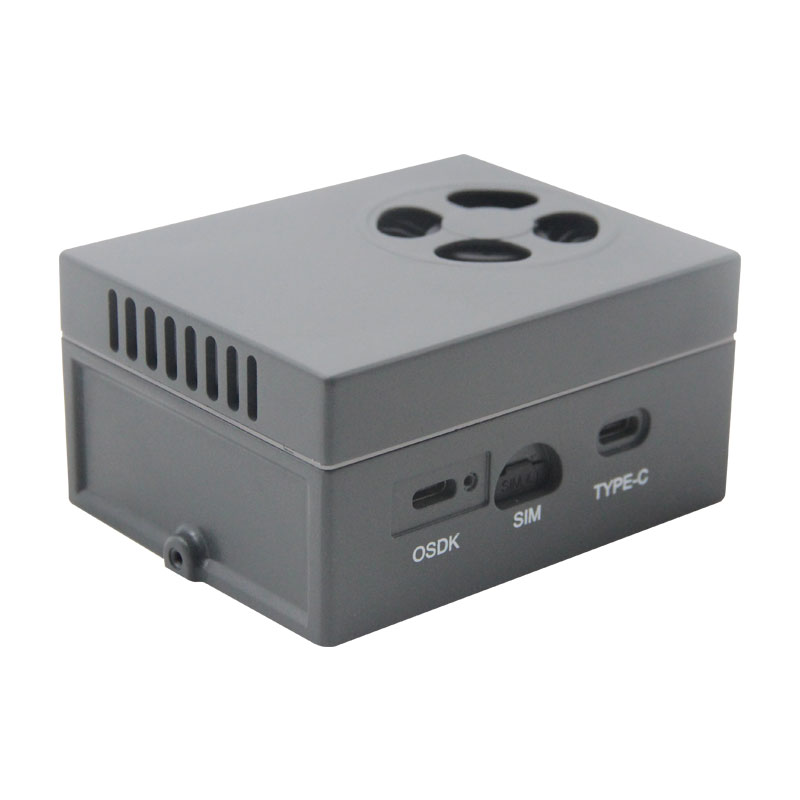

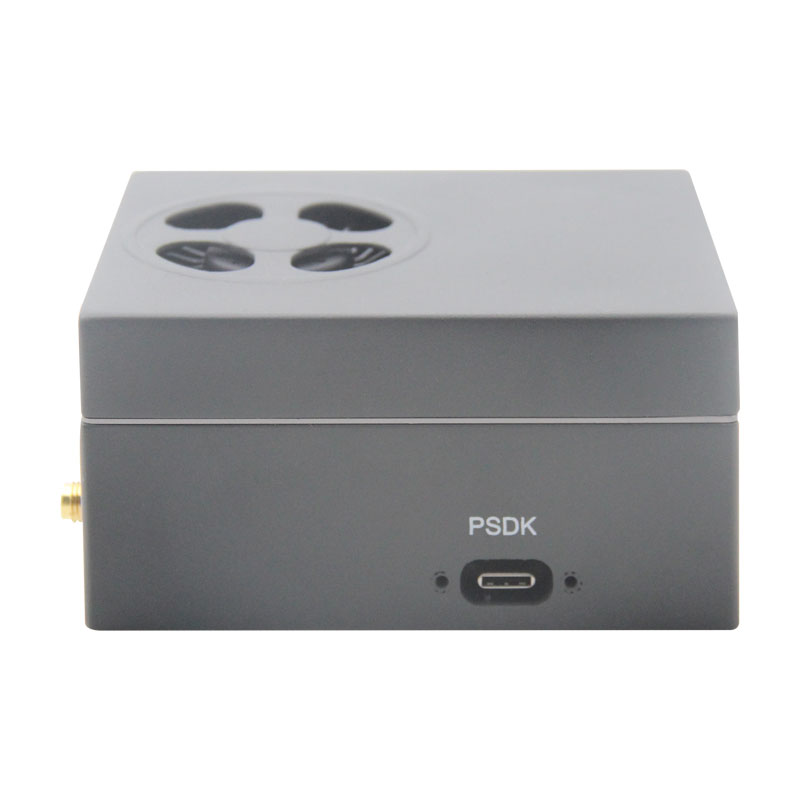

* 適配模組: NVIDIA Jetson Xavier NX/Orin Nano/Orin NX Module
* 尺寸: 100mm*74mm*47mm
* 工作溫度：-20°C to 65℃
17F1的所有外部接口均做了防護處理，防護等級高達IP65
|
|
ONX16-17F1 |
ONX8-17F1
|
ONO8-17F1
|
NX16-17F1
|
|
AI Performance
|
157 TOPS |
117 TOPS
|
67 TOPS
|
21 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
384-core NVIDIA Volta GPU
with 48 Tensor Cores |
||
|
CPU
|
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
|
6-core NVIDIA Carmel Arm® Cortex®-A78AE v8.2 64-bit CPU 6MB L2 + 4MB L3
|
|
|
Memory
|
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
68 GB/s |
16GB 128-bit LPDDR4x
51.2 GB/s |
|
Storage
|
128GB NVMe |
16GB eMMC + 128GB NVMe
|
||
|
Video Encode
|
1x 4K60 (H.265) 12x 1080p30 (H.265) 1x 4K60 (H.264) 11x 1080p30 (H.264) |
1080p30 supported by 1-2 CPU cores
|
2x 4K60(H.265)
22x 1080p30 (H.265) 2x 4K60(H.264) 20x 1080p30 (H.264) |
|
|
Video Decode
|
1x 8K30 (H.265) 18x 1080p30 (H.265) 1x 4K60 (H.264) 11x 1080p30 (H.264) |
1x 4K60 (H.265)
2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
2x 8K30(H.265)
44x 1080p30 (H.265) 2x 4K60(H.265) 22x 1080p30 (H.264) |
|
|
USB Type-C
|
USB 2.0(480Mbps) , USB 3.2(10Gbps), Displayport(2 Lane) |
|||
|
Networking
|
5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi 6(Optional) |
|||
|
OSDK
|
USB2.0, UART, PPS, PWM |
|||
|
PSDK
|
USB 2.0,UART |
|||
|
Power
|
30W(12-24V) |
25W(12-24V)
|
20W(12-24V)
|
25W(12-24V) |
|
Mechanical
|
100mm*74mm*47mm 238g |
|||
|
Temperature
|
-20°C to 65℃ | |||
